Inflatable Decontamination Shower Type DD 05

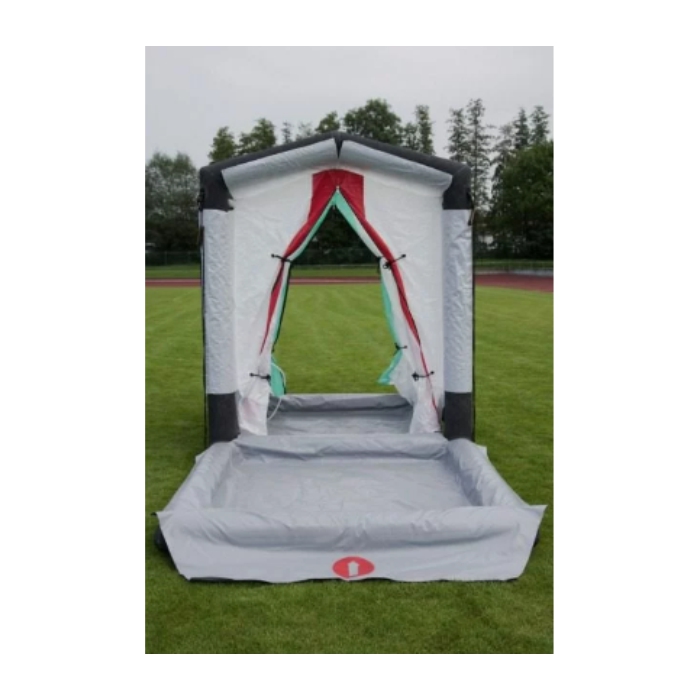

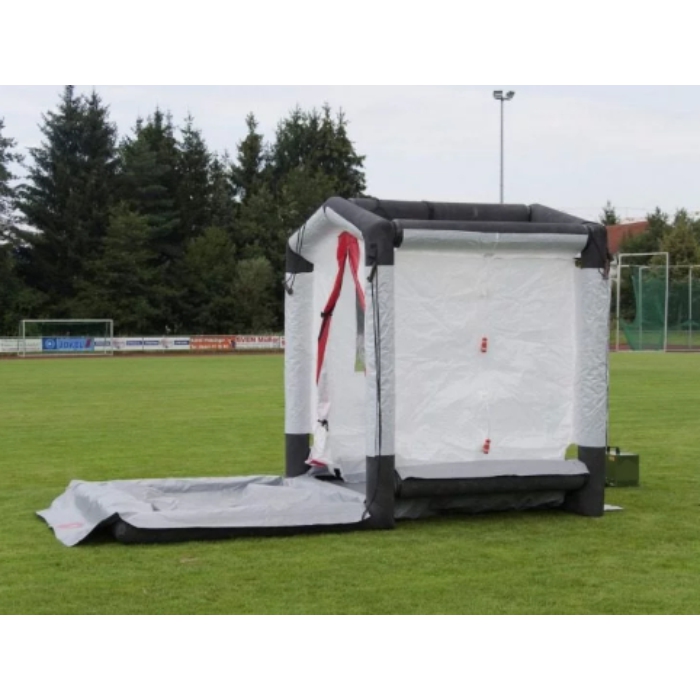

Inflatable Decontamination Shower Type DD 05 With External Basin

Suitable for disaster control, rescue services and fire brigade as a quick action to clean up
people.
The shower can be inflated quickly and easily via the integrated combination connection, both
with a blower and with a compressed air bottle

External dimensions
Length: 3.77 m
Width: 2.00 m
Ridge height: 2.4 m
Usable area shower: approx. 2.5 square meters
Usable area in front of the basin: approx. 2.5 square meters, weight: 55 kg
Installation time standard fan: approx. 150 sec / 0.15 bar
Setup time turbo blower: approx. 120 sec / 0.25 bar
Construction time of the compressed air cylinder approx. 70 sec / 0.3 bar
Bottle requirement: 1 x 6 liters / 300 bar
Packing dimensions: 1100 x 900 x 500 mm
Number of air chambers: 1
Complete price including support frame with shower cubicle inside. The catch basin is
integrated in the shower cubicle. In the standard version, the shower cubicle is supplied with a
water pipe and 5 nozzles, a pair of gloves and a hand shower /.
Water connection: selectable in GEKA or Storz D
Water drainage in basin: Storz D

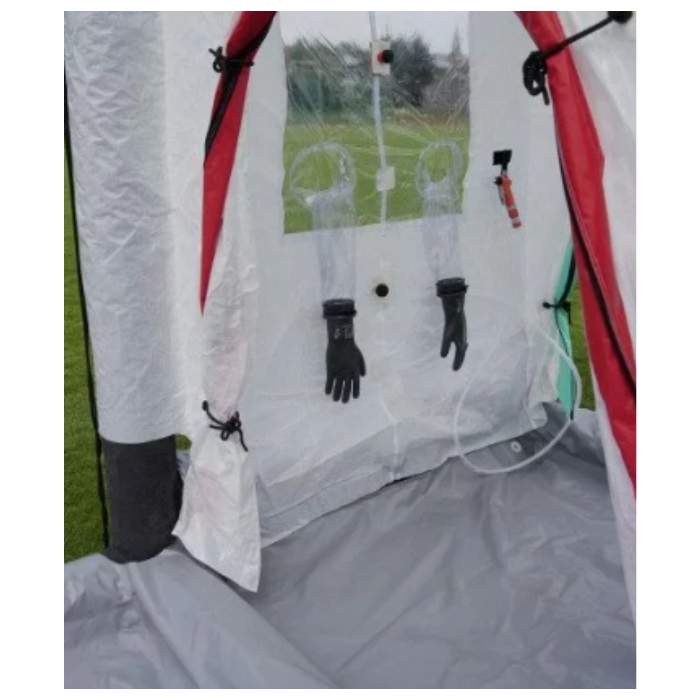

The gloves are inserted into the side wall with oval openings for ergonomic operation. The
gloves can be exchanged individually if necessary.
The front basin and the actual shower are divided into 2 basins with inflatable beams. All control
elements, inlet and outlet connection of both basins are attached to the operators side. The
floor bar on the operators side is set higher so that the operator can stand here ergonomically
for a longer period of time.
The shower cubicle, roof and basin are detachably attached and can each be purchased
separately
